Letter Lighting Modules 3W IP65 for Light Box Illumination
• Edge Lit LED Module with optical lens design provides wider light distribution and improved illumination coverage for sign lighting applications.
• Designed for DC12V and DC24V systems, delivering stable brightness performance for channel letters and advertising signs.
• The side emitting structure helps achieve effective light projection for professional illuminated signage projects.
Product Parameters
| Model No. |
LED |
Color |
CCT (K) |
Voltage |
Power |
LM |
Effect (LM/W) |
Angle |
| Box3Max-MFK042 |
3030 |
White |
2700~9000K |
12V/24V |
3W |
300 |
100 |
15*45° |
| Other Colors |
| Connection Qty |
Shell color |
Drive Method |
Weight (g/20pcs) |
Warranty |
W T(℃) |
ST(℃) |
IP Level |
| 20pcs |
White |
Constant Voltage |
260 |
5Years Or 50000H |
-25-+60 |
-25+80 |
IP65 |
Product Features
• Optical lens design enhances beam control and improves lighting efficiency for sign applications.
• Edge emitting structure provides wider illumination coverage with consistent light output.
• DC12V/DC24V low voltage operation supports flexible installation for various signage projects.
Led Module Applications

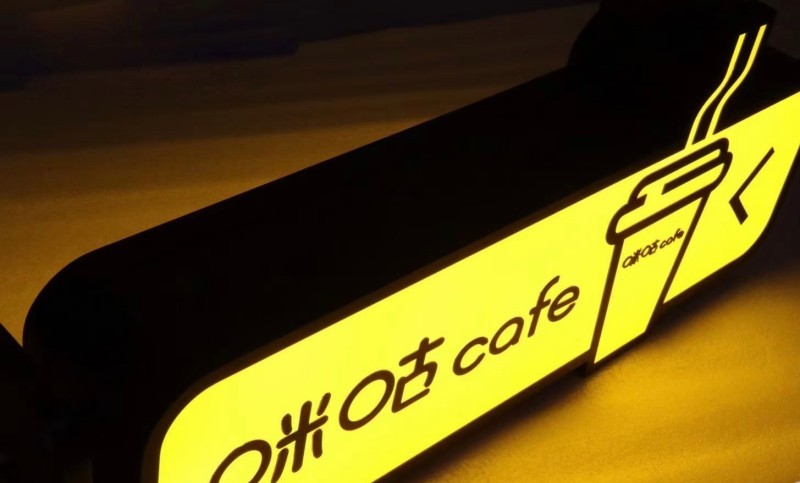

• Channel letter signs and 3D illuminated letters
• Advertising signs and commercial signage
• Retail store signs and customized lighting projects
FAQ
Q: What is an Edge Lit LED Module used for?
A: It is mainly used for illuminated signs, channel letters, and advertising lighting applications requiring wide light coverage.
Q: What is the advantage of the optical lens design?
A: The lens helps control light distribution, improve projection distance, and increase illumination coverage.
Q: What voltage options are available for this module?
A: This Edge Lit LED Module is available in DC12V and DC24V versions according to project requirements.
